基本信息Basic Information
|

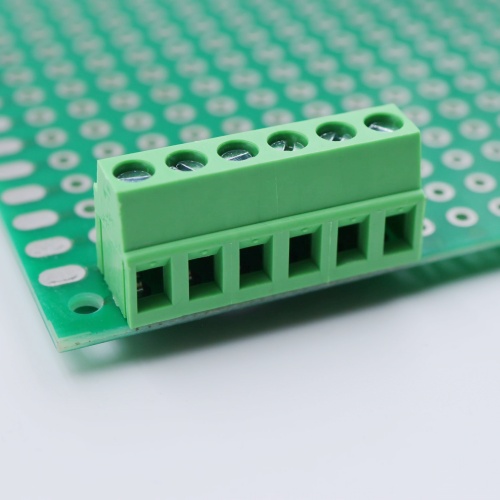

产品型号 LUPU Model |
LP124-3.81 |
|
产品间距 Pitch 【mm】 |
3.81 |
|
产品层数 Number of levels |
1 |
|
产品位数 Number of connections 【P】 |
2~24 |
|
接线方式 Connection method |
螺钉锁线 Screw connection |
|
剥线长度 Stripping Length [mm] |
5~6mm |
|
螺钉/扭矩 Screw/Torque(Max)[N.m] |
M2.0 / 0.2 |
|
工作温度 Operating temperature [℃] |
-40~+105 |
|
焊锡温度 Soldering temperature |
250℃/5S |
电气参数-IEC
|
额定电流 Rated Current |
12A |
||
|
额定电压 Rated Voltage |
160V |
||
|
过压类别 Overvoltage category |
III |
III |
II |
|
污染等级 Pollution degree |
3 |
2 |
2 |
|
额定冲击电压 Rated impulse voltage【KV】 |
2.5 |
2.5 |
2.5 |
|
额定电压 Rated Voltage 【V】 |
160 |
160 |
320 |
|
硬导线截面 Conductor cross section solid【mm²】 |
0.2~1.5 |
||
|
软导线截面 Conductor cross section flexible【mm²】 |
0.2~1.5 |
||
|
螺钉规格 screw Specification |
M2 |
||
|
剥线长度 Stripping length |
5-6mm |
||
电气参数-UL
|
使用组别 Use group |
B |
C |
D |
|
额定电流 Rated Current 【A】 |
12 |
- |
10 |
|
额定电压 Rated Voltage 【V】 |
300 |
- |
300 |
|
额定接线容量 Rated cross section |
24-16 AWG |
||
材料数据
|
材料环保environment |
ROHS |
|
绝缘材料Insulation Material |
PA66 |
|
阻燃等级Flame relardant rating |
UL94V-0 |
|
接触件材质Conductor Material |
铜合金 Copper alloy |
|
导体表面镀层 Plating of conductor surface |
镀锡 Sn plated |
产品尺寸图
